Adam Audio has finally released a new product line, the successor to the phenomenally successful AX series, after 10 years the range is getting a full design facelift. The A-series takes the AX range to the next level, pushing the boundaries in regard to studio monitor design.
The new range gives a detailed & accurate reproduction of sound with an amazingly transparent high & low end allowing you to really notice those minor tweaks that make up such a large part of the mixing process. There are 4 models that comprise the range, the A4V, A7V, A44H, A77H and A8H. These speakers will cover applications ranging from professional level - home-based studios, broadcasting to post-production & even home entertainment scenarios.
There are a number of innovations to be found in these speakers including; rotatable HPS waveguide technology and DSP-based room correction and added voicings that enable you to tune the speakers for a specific space. They even have upgradable firmware so that the speakers can be updated as future innovations come out, extending the life of the speakers. As per all Adam Audio speakers, they come with an extended five-year warranty to give you that long-term peace of mind.

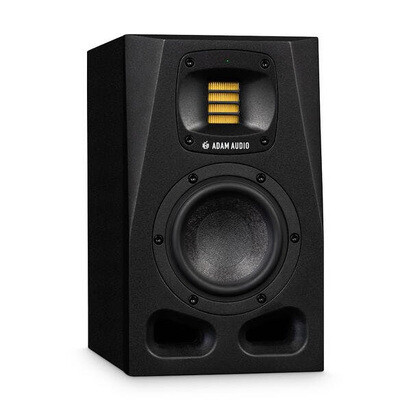

A4V - Quality Compacted
These ones are intended for smaller spaces with shorter listening distances. The A4V provides a full & accurate sound field in a space-saving & compact way. It’s a two-way speaker that makes use of a 4” long-throw woofer that is comprised of the same Multi-Layer Mineral (MLM) fibers as all the others in this range and the older X-ART tweeters. The built-in DSP allows you to tune the speaker to match your space, with a frequency range of 53 Hz to 50 kHz it can service a variety of uses from podcasting to post-production, djing to producing, and even works within immersive and binaural environments.
Technical Specifications:
•Tweeter: Rotatable X-ART Tweeter + HPS Waveguide
•Woofer: 1x 4" MLM woofer with 25 mm / 1” voice coil
•Frequency response @ -6dB: 53 Hz - 42 kHz
•Maximum SPL per speaker at 1 m: 100 dB
•AD convertor: 24-bit
•Internal sample rate: 96 kHz
•Amplifier power RMS: 110 W (woofer) + 20 W (tweeter)
•Crossover frequency: 3.0 kHz
•Power rating: 300 W max
•Analog Input (balanced): 1x XLR
•Analog Input (unbalanced): 1x RCA
•Net Weight: 5.8 kg (12 lbs 13 oz)
•Gross Weight: 7.3 kg (16 lbs 1 oz)
•Cabinet Height x Width x Depth: 268 x 158 x 220 mm (10 1/2" x 6 1/4" x 8 5/8“)
•Box Dimensions: 390 x 285 x 345 mm (15 3/8" x 11 1/4" x 13 5/8"

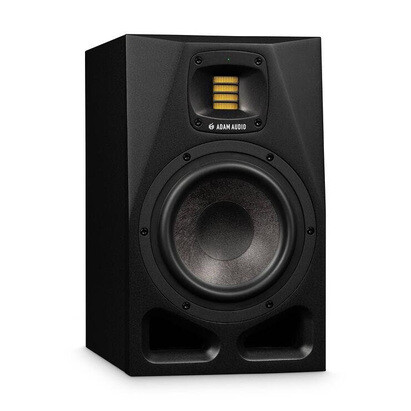

A7V - A New Industry Standard
The A7V is going to be your go-to for music production, as its size is going to cater for a good low end whilst retaining that fantastic crispy top end. The frequency range on these is really wide going from 1 Hz to 50 kHz. Again the DSP allows tuning options for your room, to make sure you are optimizing the sound for tight precision.
Technical Specifications:
•Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
•Woofer: 1x 7" MLM woofer
•Woofer Voice Coil Ø: 33 mm / 1.3”
•Frequency response @ -6dB: 41 Hz - 42 kHz
•Max. peak SPL per speaker at 1 m: 105 dB SPL
•AD convertor: 24-bit
•Internal sample rate: 96 kHz
•Amplifier power RMS: 110 W (Woofer) + 20 W (Tweeter)
•Crossover frequency: 2.8 kHz
•Power rating: 300 W max
•Analog Inputs (balanced): 1x XLR
•Analog Inputs (unbalanced): 1x RCA
•Net Weight: 8.7 kg / 19 lb 3 oz
•Gross Weight: 10.7 kg / 23 lb 9 oz
•Cabinet Height xWidth x Depth: 337 mm x 200 mm x 280 mm[13 1/4" x 7 7/8"11"]
•Box Dimensions: 470 mm x 330 mm x 415 mm [18 1/2“ x 13“ x 16 3/8“

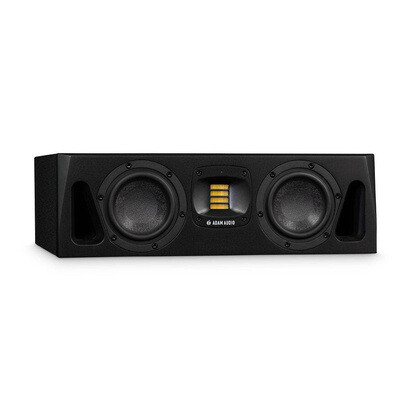

A44H - High Standards, Low Profile
This option is where the range starts to switch it up a bit. This low-profile option is a great alternative to the A7V that still delivers similar performance characteristics. It has a 19- inch width and is horizontally oriented which means it can sit on a standard rack shelf or be mounted above or below a display. It can also work as a centerpiece to immersive & binaural speaker set-ups. They feature dual 4-inch long-throw low-frequency woofers and the renowned X-ART tweeter delivers a wide frequency range and the DSP again gives your room for tuning options.
Technical Specifications:
•Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
•Woofer: 2x 4" MLM woofer
•Woofer Voice Coil Ø: 25 mm / 1”
•AD convertor: 24-bit
•Internal sample rate: 96 kHz
•Amplifier power RMS: 110 W (Woofer) + 20 W (Tweeter)
•Crossover frequency: 2.4 kHz
•Power rating: 300 W max
•Analog Inputs (balanced): 1x XLR
•Analog Inputs (unbalanced): 1x RCA
•Net Weight: 9.7 kg / 21 lbs 6 oz
•Gross Weight: 12.1 kg / 26 lbs 11 oz
•Height x Width x Depth: 135 mm x 432 mm x 350 mm [5 3/8" x 17" x 133/4"]
•Gift Box Dimensions: 265 mm x 560 mm x 475 mm [10 3/8“ x 22“ x 18 3/4“

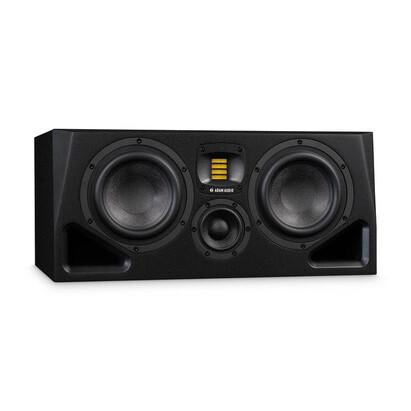

A77H - Nothing Compares
This is the replacement for the A77X, it's a true three-way midfield monitor that utilizes all of Adam Audios' secrets to provide a fantastically rich & spacious sound that can really fill a larger studio room. It features two 7-inch woofers, a midrange driver, and of course Adam Audio’s X-ART tweeter. All of this allows the speaker to provide an ultra-wide frequency range, ensuring that all the frequencies your may need to hear are covered and then some.
Technical Specifications:
•Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
•Midrange Driver: 3.5” MLM midrange driver
•Midrange Voice Coil Ø: 33 mm / 1.3”
•Woofer: 2x 7" MLM mid-woofer
•Woofer Voice Coil Ø: 38 mm / 1.5”
•AD convertor: 24-bit
•Internal sample rate: 96 kHz
•Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
•Crossover frequency: 400Hz – 3.0 kHz
•Power rating: 500 W max
•Analog Inputs (balanced): 1x XLR
•Analog Inputs (unbalanced): 1x RCA
•Net Weight: 17.1 kg / 37 lbs 11 oz
•Gross Weight: 20.5 kg / 45 lbs 3 oz
•Height x Width x Depth: 236 mm x 531 mm x 350 mm [9 1/4" x 20 7/8" x 13 3/4"]
•Gift Box Dimensions: 370 mm x 665 mm x 475 mm [14 5/8“ x 26 1/8“ x 18 3/4“

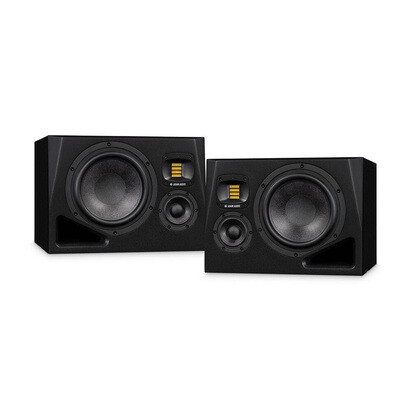

A8H - Supreme Monitoring
This is the apex of the A series; the A8H is a three-way speaker that provides a super accurate, and analytical sound required for precision listening scenarios. The speaker features an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, a cutting edge midrange driver, and of course the handmade X-ART tweeter that completes any Adam Audio speaker. Just like its younger brothers in the A series the A8H provides unparalleled flexibility for precision tuning your sound via its rotatable HPS waveguide technology and can really fill in any medium & large space, this really is the go-to speaker for the pro audio user.
It's worth noting that these come a specific sides, so you buy the left & the right version.
Technical Specifications:
•Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
•Midrange Driver: 3.5” MLM midrange driver
•Midrange Voice Coil Ø: 33 mm / 1.3”
•Woofer: 1x 8" MLM mid-woofer
•Woofer Voice Coil Ø: 38 mm / 1.5”
•AD convertor: 24-bit
•Internal sample rate: 96 kHz
•Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
•Crossover frequency: 400Hz – 3.0 kHz
•Power rating: 500 W max
•Analog Inputs (balanced): 1x XLR
•Analog Inputs (unbalanced): 1x RCA
•Net Weight: 13.6 kg / 30 lbs
•Gross Weight: 16.6 kg / 36 lbs 10 oz
•Cabinet Height x Width x Depth: 274 mm x 382 mm x 329 mm [9 3/4" x 15" x 13"]
•Box Dimensions: 405 mm x 510 mm x 455 mm [16“ x 20 1/8“ x 17 7/8“ ]
